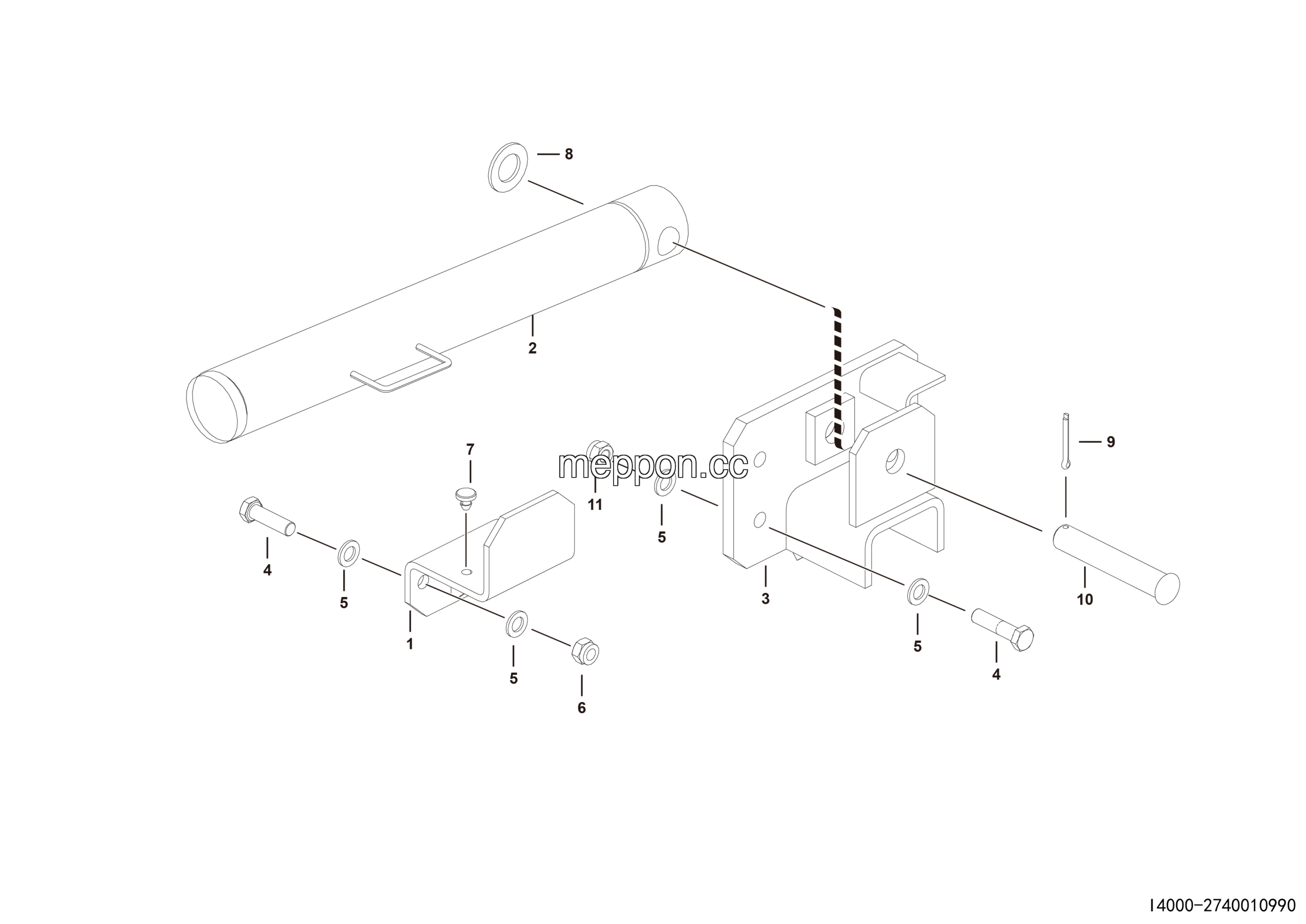

LGMG Off-Highway Dump Truck 2024 – Safety support mounting assy – I4000-2740010990
Category: 2024 > Off-Highway Dump Truck > CMT66 > C0660W3E0A207
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin GB882-B28*160EpZn-35 | 4016010117 | 1 |
| 2 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 6 |
| 3 | Assembly | 27170117352 | 1 |
| 4 | ASSEMBLY | 27170117461 | 1 |
| 5 | Seat | 27170125392 | 1 |
| 6 | Bolt GB5785-M16*1.5*65EpZn-8.8 | 4011000981 | 4 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 8 | Bolt GB5786-M16*1.5*55EpZn-8.8 | 4011000698 | 2 |
| 9 | Fastening bolt damping block | 27170140901 | 2 |
| 10 | Washer GB97.1-30EpZn-300HV | 4015000119 | 1 |
| 11 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
